Project: New Jerusalem Orphanage
Architects: 4D and A Architects
Containers Used: 28
Location: Midrand, South Africa
Completed: 2011
Overview
The New Jerusalem Orphanage is a powerful example of how architecture can bring hope and dignity to vulnerable communities. Built entirely from recycled shipping containers, this vibrant complex in Midrand, South Africa, redefines the concept of affordable housing. It provides shelter, care, and education to abandoned and orphaned children while promoting environmental sustainability.
The project was commissioned by the New Jerusalem Children’s Home, a non-profit founded by sisters Anna and Phina Mojapelo, who have dedicated their lives to supporting children affected by poverty, abuse, and HIV. With limited funding and a growing number of residents, they sought an affordable yet inspiring solution — one that could be built quickly, sustainably, and with love.
Design and Construction

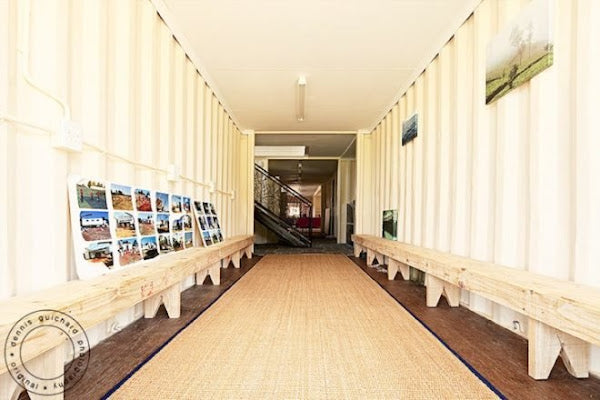

4D and A Architects approached the challenge with an innovative mindset. Using 28 shipping containers, each 20 and 40 feet long, they designed modular living spaces that are both functional and emotionally uplifting. The project includes homes for the children, shared kitchens, and vibrant communal areas filled with color and natural light.

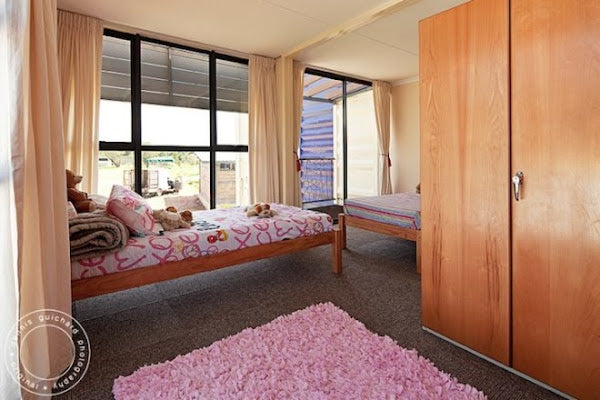

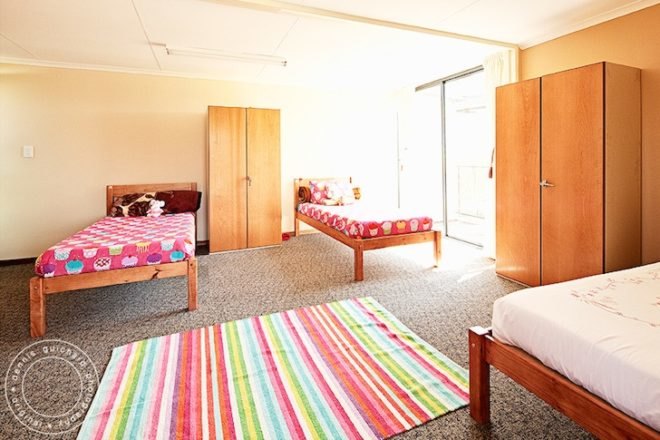

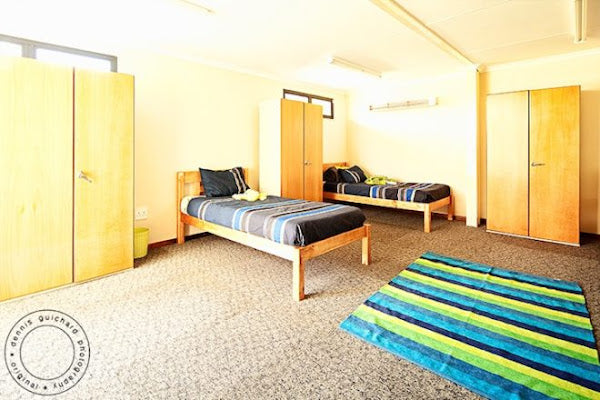

Each housing unit accommodates twelve children and a house mother, creating a small family-like environment. Two homes share a central kitchen and lounge, encouraging a sense of togetherness while maintaining privacy and safety.

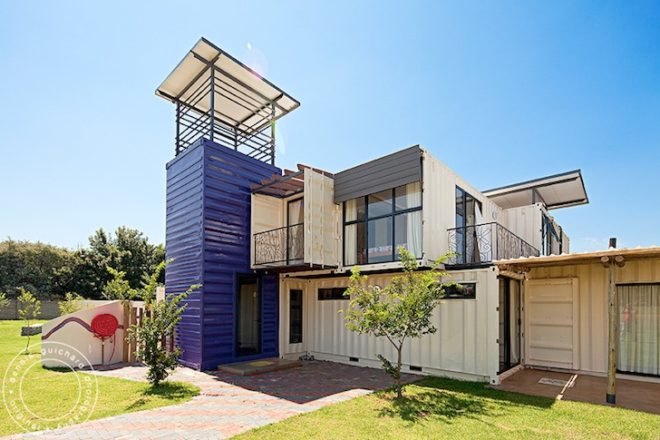

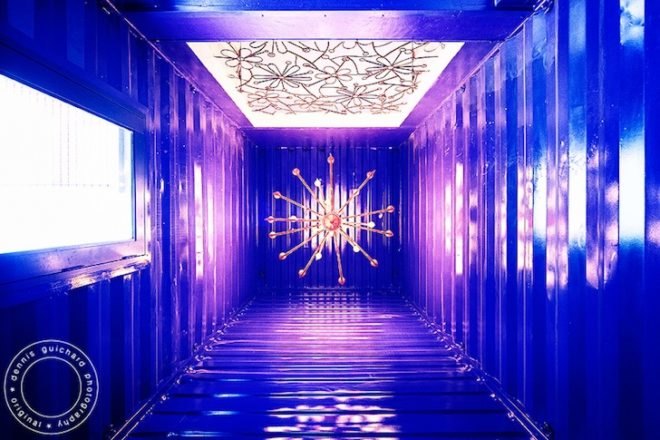

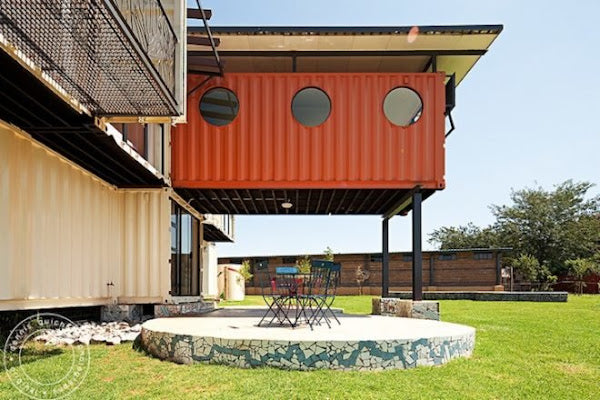

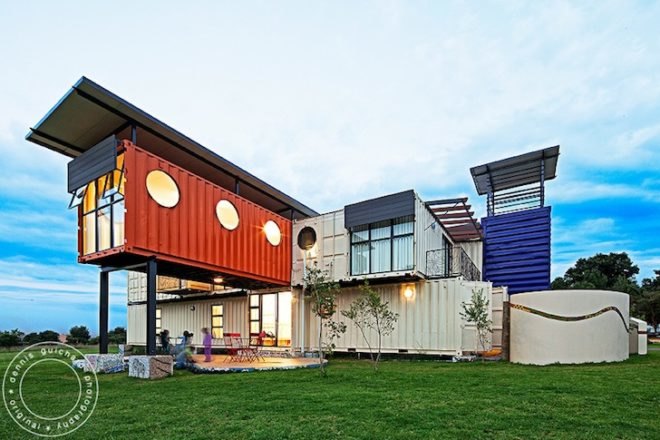

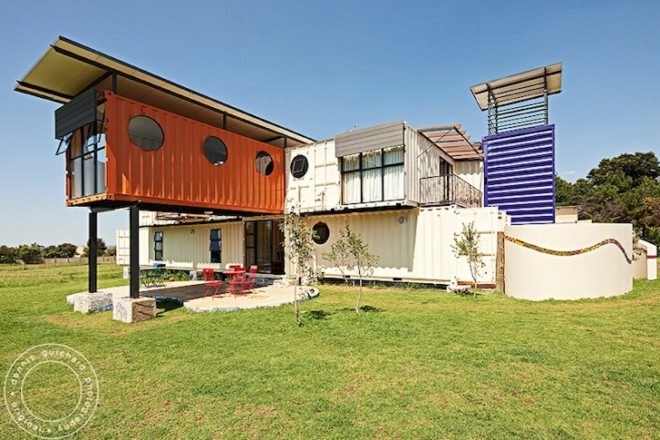

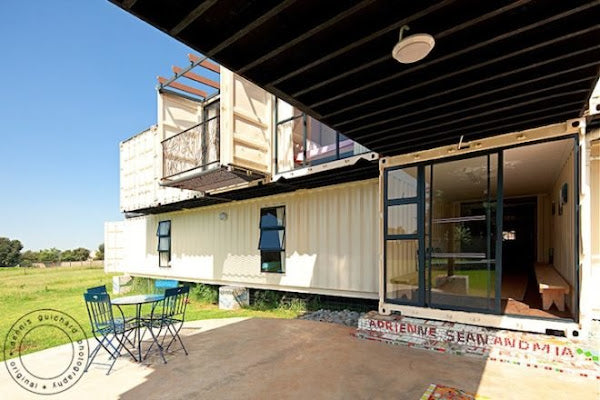

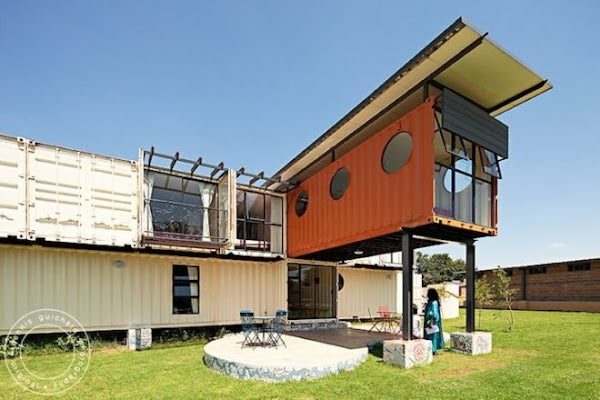

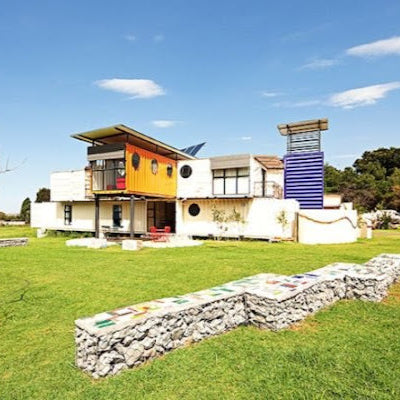

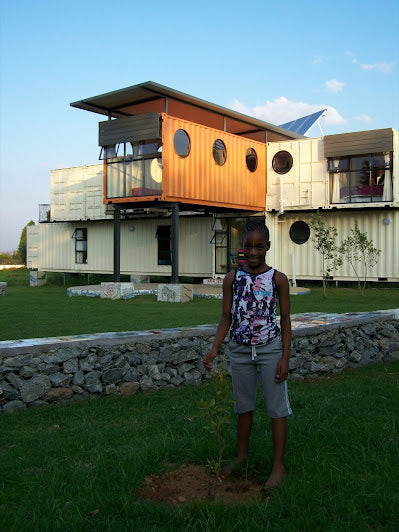

The containers were stacked both vertically and horizontally, creating a dynamic arrangement that feels playful yet practical. A bright color palette was used throughout, turning the once cold steel structures into warm, welcoming homes.
The old brick dormitories were repurposed into dining and kitchen spaces, demonstrating the project’s commitment to adaptive reuse and sustainability.
Environmental and Thermal Design
Building in South Africa’s mixed climate required careful attention to insulation and heat control. The architects implemented several strategies:
-
Roof garden for thermal balance
-
Timber screens made of eco-friendly composite decking
-

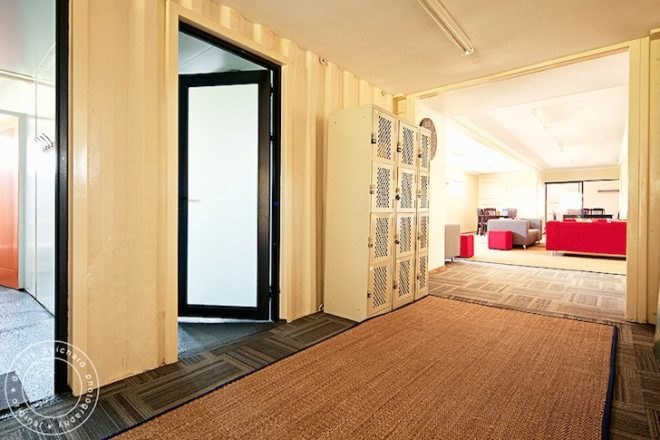

Drywall cladding with 50mm Isotherm foam insulation inside each container
-

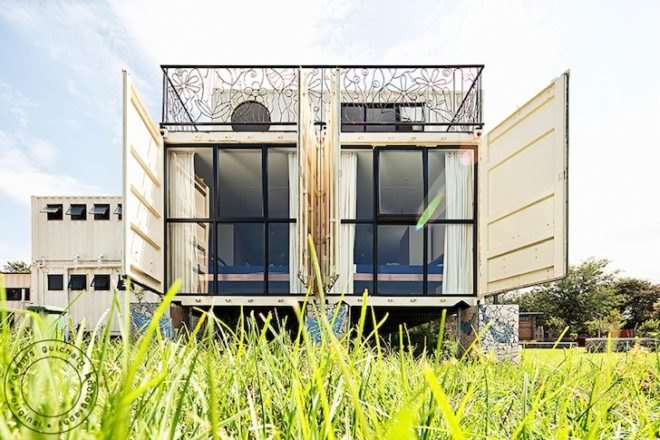

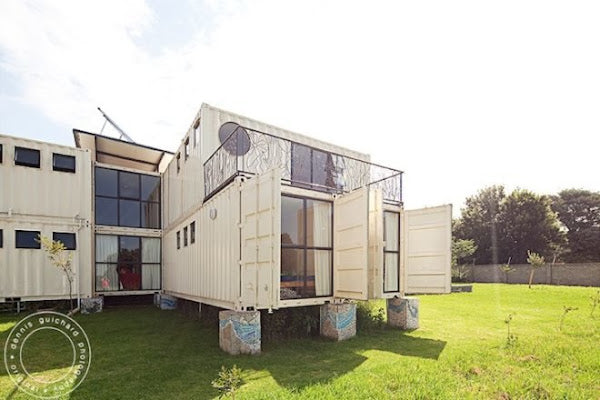

Elevated plinth foundations to encourage airflow and reduce ground heat transfer
These design measures keep the interiors comfortable throughout the year while minimizing energy consumption.
Solar panels and photovoltaic systems were also added to support the orphanage’s long-term sustainability goals.
Social and Humanitarian Impact
Since its completion in 2011, the orphanage has become a symbol of resilience and compassion. More than 1,000 children have found refuge here since its founding in 2000. The project stands not just as architecture but as a living example of how design can address deep social needs with creativity and empathy.
The orphanage continues to rely on the generosity of donors, NGOs, and local authorities to sustain and expand its work. Despite financial challenges, the initiative has set a new benchmark for socially conscious container architecture in Africa.
About the Architects – 4D and A Architects
4D and A Architects is a dynamic South African practice known for innovative, sustainable, and socially responsible design. Their work combines aesthetic value with environmental awareness, creating spaces that are both functional and meaningful.
About New Jerusalem Children’s Home
The New Jerusalem Children’s Home is a faith-based, non-profit organization providing holistic care for orphaned, abandoned, and HIV-affected children. Located on a 26,000 m² agricultural plot in Midrand, it includes nurseries, classrooms, dormitories, a Montessori preschool, play areas, and a permaculture garden.
The home’s mission is to raise children in small, eco-friendly family units that promote education, self-sufficiency, and environmental consciousness
Why It Matters
The New Jerusalem Orphanage proves that humanitarian architecture can be both affordable and beautiful. By reimagining discarded shipping containers as nurturing homes, this project highlights how innovation can overcome financial limitations and social challenges. It is a reminder that sustainable architecture is not only about reducing carbon footprints but also about creating places that restore dignity and hope.
What It Could Mean for Sri Lanka
For Sri Lanka, this project is a clear lesson in possibility and purpose. With many communities facing housing challenges due to poverty, displacement, and natural disasters, container-based architecture can provide fast, affordable, and durable solutions.
Hybrid Cargotecture-style homes can offer:
-
Quick construction timelines for families in need
-
Reusable and relocatable housing for disaster-prone regions
-
Energy-efficient, low-maintenance units ideal for rural or urban use
By adopting similar principles, Sri Lanka can lead the region in sustainable humanitarian design that changes lives while protecting the environment.
